HUBBELL MALE LOCKING PLUG HBL26CM11
HUBBELL MALE LOCKING PLUG HBL26CM11
$44.10
/
Pickup available at 1440 N Federal Hwy
Usually ready in 24 hours

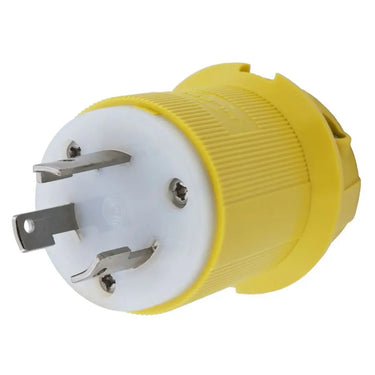

The Hubbell Male Locking Plug - HBL26CM11
Locking Devices, Twist-Lock®, Marine Grade, Male Insulgrip® Plug, 30A 125V AC, 2-Pole 3-Wire Grounding, NEMA L5-30P, Screw Terminal, Corrosion resistant, Yellow Nylon.- Ribbed nylon housing provides a secure grip and impact and chemical resistance.
- Superior cord grip design protects terminations from excess strain.
- Integral dust shield protects wiring chamber from dust or contaminants.
General
| Application | Extra Heavy Duty Industrial/Marine |
| Color | Yellow |
| Cord Range | 0.360"-0.930" (9-24) |
| Environmental Conditions | Corrosion Resistant |
| Horsepower - Maximum | 2 |
| Item Type | 30A Corrosion Resistant Insulgrip® Plug |
| Material | Nylon |
| Material - Mounting Hardware | Cord Mounted |
| Number Of Poles | 2-Pole |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Performance |
|
| Type | Plugs |
| UPC | 783585039084 |
Dimensions
| Dimensions | 2.26 in x 2.26 in x 2.75 in |
| Display Size | Standard Sized |
| Height | 2.75 in |
| Length | 2.26 in |
| Weight | 0.30 lb |
| Width | 2.26 in |
Electrical Ratings
| Amperage Rating | 30 A |
| Connectivity | Pressure Terminal Screws |
| Current / Amperage Rating | 30 A |
| Current Rating | 30 A |
| Dielectric Strength | Withstands 2,000V minimum |
| Phase | Single Phase |
| Voltage Rating | 125 VAC |
| Voltage Rating Description | 125 VAC |
| Wattage | 3750 W |
Conductor Related
| Cable Range | 0.360 - 0.930 in |
| Cord Type | All Listed Portables |
| Number Of Wires | 3-Wire |
| Wire Size | #16 AWG to #8 AWG |
Certifications and Compliance
| Industry Standard(s) |
|
| Nema Rating | L5-30P |
